Features



KBE movable floors are made of a stainless steel supporting structure that operates like a scissor lift using motors on the outside of the pool to turn the spindles on the structure. Large reinforced fiberglass panels cover the structure.



  • Metal parts are made of non-corrosive 316 stainless steel.

  • The surface design allows water flow through 1.5% of the floors surface area.

  • Supports a live load of 3 people per m2 in dry conditions.

  • The area below the floor is free from cables, making it possible to use an automatic pool cleaner.

  • Moves at a rate of 1m in 5 minutes.

  • Integrated steps can be incorporated into the design.

  • Tilting functionality can be built-in.

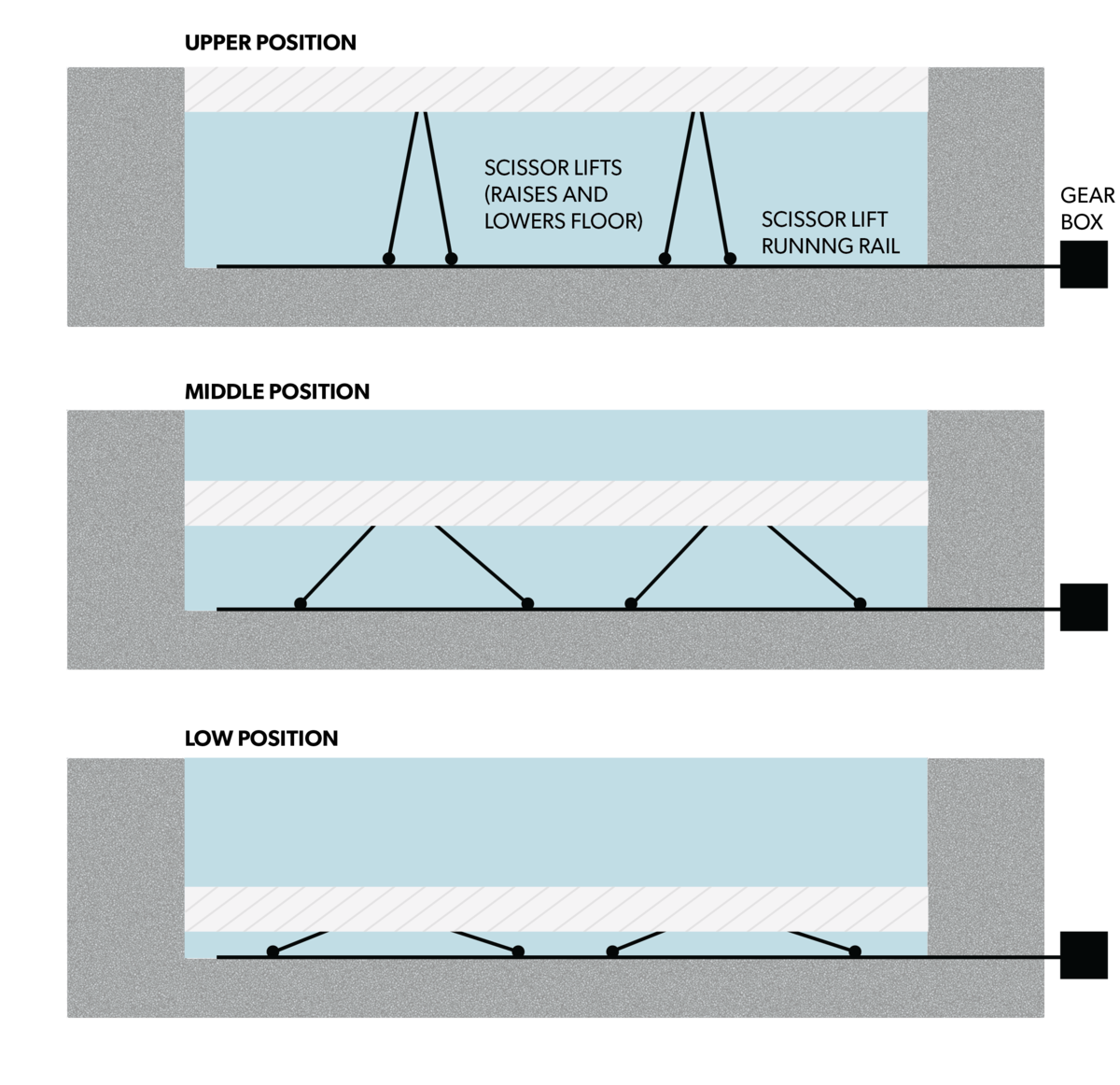

KBE Diagram





Benefits





Custom Installations



Custom Installations

Designed to your specifications.





Quick Installations



Quick Installations

Between two to four weeks.



Pool Usage



Increase Pool Usage

Expands a programming opportunities.

Operation Services



Easy Operation & Low Maintenance

Simple and user friendly.



Cost Savings


Cost Savings

Minimizes heat loss and evaporation.



Safety



Safety

Key is required to operate the floor.











The KBE Difference





Installation




KBE FLOOR
FLOATING FLOOR

LENGTH

2-4 weeks

Complex and time consuming

NEW POOLS

EXISTING POOLS

FLOOR SYSTEM

Mechanical Spindle System

Air Compressor and Cable/Pulley System

TESTING CONDITIONS

Pool may be full or empty

Pool must be full

TRAINING & COMMISSIONING
 Immediately after installation After the pool is filled









Safety




KBE FLOOR
FLOATING FLOOR

LOCKING MECHANISM

Self locking

DEPTH INDICATORS
 Pictoral

OPERATION REQUIREMENTS
 Key Required N/A

FLOOR LEVEL IN ALL POSITIONS










Operation & Maintenance




KBE FLOOR
FLOATING FLOOR

RECOMMENDED MAINTENANCE
 Yearly

Daily/Monthly

COST
 Low cost High Cost

UNDER WATER DIVERS REQUIRED

USER FRIENDLY

CABLES UNDER FLOOR
